Product Attributes

Dimension	850L1100W1400H (mm)
Max carrier size	Max:330(L)*250(W)(mm)
Temperature setting range	Max400 ℃
Position accuracy	+ / - 0.05 mm
Solder pot capacity	15 kgs /PCS
Preheat method	Upper IR heating

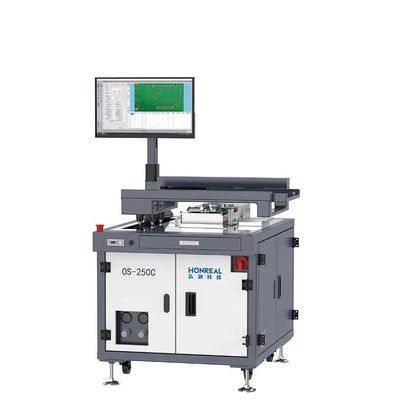

Mini Wave Selective Soldering Machine for Electronics Production

Features

The machine integrates flux spraying and soldering

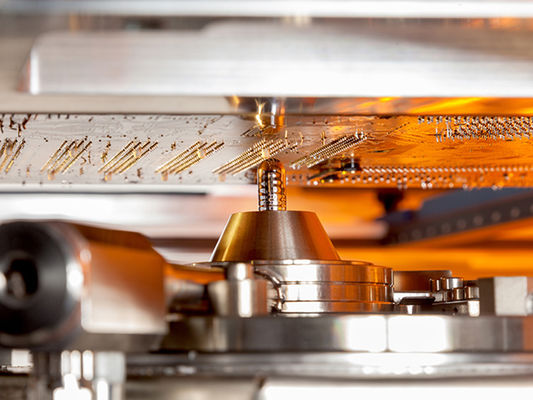

The solder pot is fixed, and the PCB board moves to realize soldering
Maximum PCB dimensions: 330 x 250mm
Small in occupation space and low in energy consumption
Manual placement and removal of boards
It is particularly suitable for the products of NPI

Technical Parameters

General Specifications
Model	OS-250C
Overall Dimensions	850L1100W1400H (mm)
Machine frame and cover	Tube frame + Door with painting
Operating height	900+30mm
Weight	Approx.240KG
Power supply	1φ 220V 50/60HZ
Total power	5.5KW
PCB Parameters
PCB size	Min:60(L)40(W); Max:330(L)250(W)(mm)
Top component height	Max130mm
Bottom component height	Max30mm
PCB Weight	Max 5Kg
PCB Process Edge	>3mm
Selective Spray System
Spray movement mode	PCB movement in XYZ axis
Spray flux volume	2L
Spray flux add mode	Manual
Spray nozzle type	Needle
Spray cycle time	1 Sec/soldered dot (The minimum spray time can be set to 0.2 seconds)
Spray movement precision	0.05mm
Spray flow control	pressure gage + flow valve
Selective Soldering System
Welding movement mode	PCB movement in XYZ axis
Movement mode	Step motor + linear rail
Solder feeding mode	Manual (Option: auto)
Solder capacity	16KG
Solder melting time	30min
Solder power	3.3KW
Solder nozzle size	Standard D8mm, other sizes is option
Solder cycle time	2~6 Sec/ soldered dot
Temperature control mode	PID+SSR
Temperature setting range	Max400 ℃
Temperature accuracy	±2 ℃
Waver height	Max 5mm
Welding precision	0.1mm
Solder dross	0.2Kg/8H(N2 protection)
N2 Protection System
N2 protection mode	Nozzle and solder pot
N2 consumption	1.5M3/h(Nitrogen concentration>99.999%)
N2 flow control	Digital flow control
Exhaust System
Top cover exhaust	Customer supply
Exhaust quantity	1 PCS
Exhaust volume	About 5m³/min
Control System
Control mode	PC+ motion control card
PCB Process parameter	Setting, save, open in the PC screen
Other	PCB counting, message, alarm can be read in the PC
Welding real-time monitoring
Options
	Top safe cover
	Safety light curtain
	Top heater system
	Barcode scanner
Easy-damaged parts
	Spray flux nozzle, Soldering nozzle
